FC440
SPE Media Converter

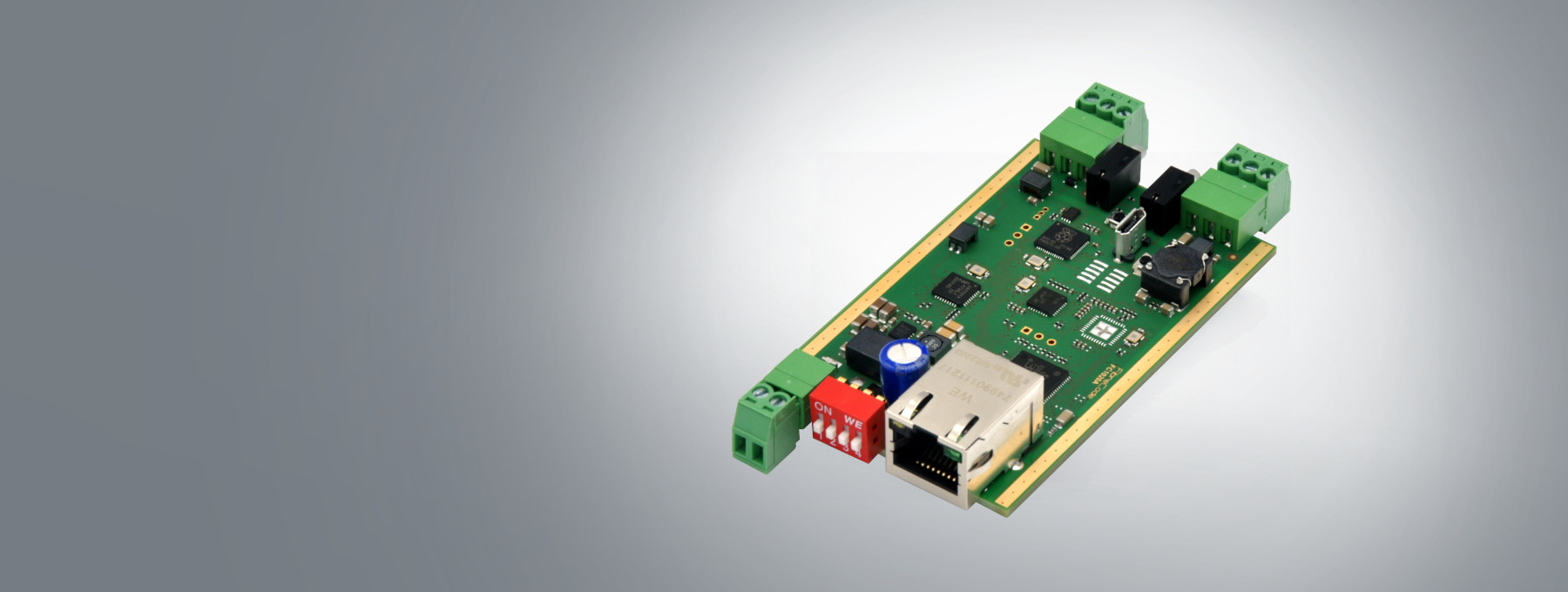

FC440 SPE Media Converter

Description

The FC440 SPE Media Converter is a compact hardware interface that connects a standard 100BASE-TX LAN network with automotive SPE 100BASE-T1 and industrial SPE 10BASE-T1L Ethernet devices and switches.

The FC440 SPE Media Converter features a pre-configured switch that enables seamless Ethernet traffic transmission across all three ports.

The connected PC can use Wireshark to monitor and verify all network traffic on all ports.

Features

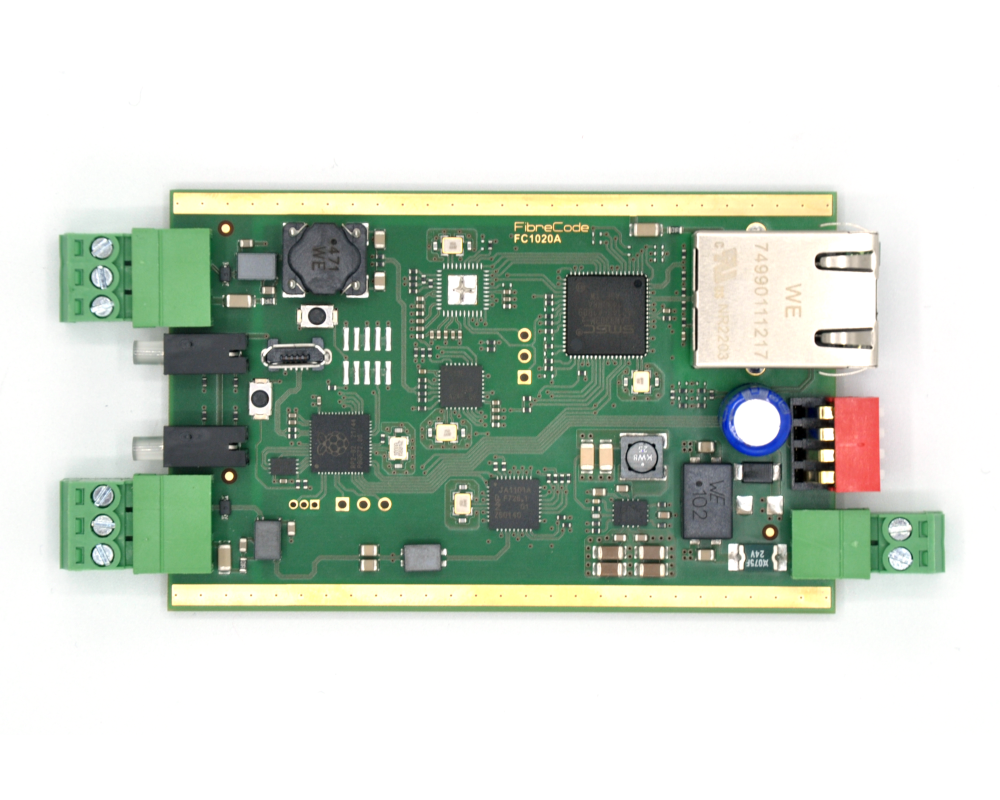

Hardware

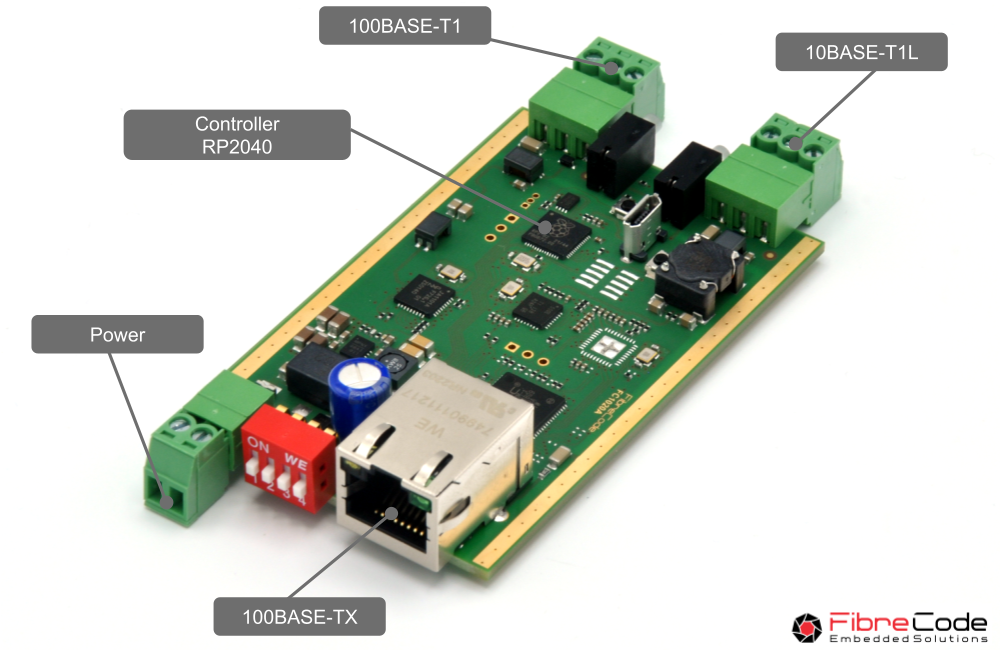

  • 100BASE-T1 and 10BASE-T1L interface with UTP connector
  • 100BASE-TX interface with RJ45 connector
  • NXP TJA1101 100BASE-T1 PHY
  • Analog Devices ADIN1100 10BASE-T1L PHY
  • 12V Power-Input
  • 4-DIP-Switches to configure settings of 100BASE-T1/10BASE-T1L

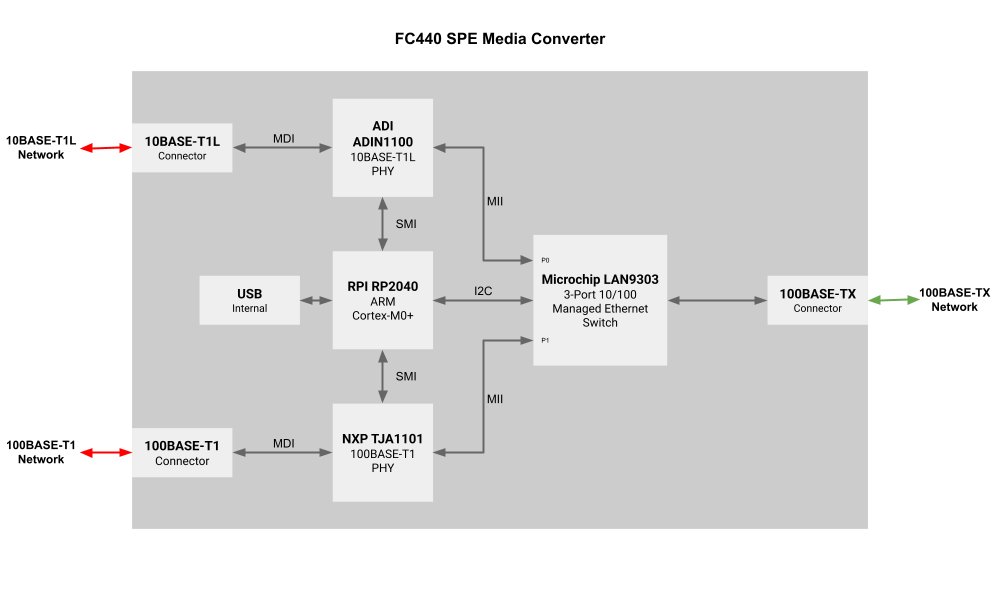

  • RP2040 controller for internal switch and PHY-Configuration

Software/Firmware

  • Supports all standard network adapters (100BASE-TX RJ45 or USB-LAN-Adapters in case no LAN/RJ45 available)

Applications

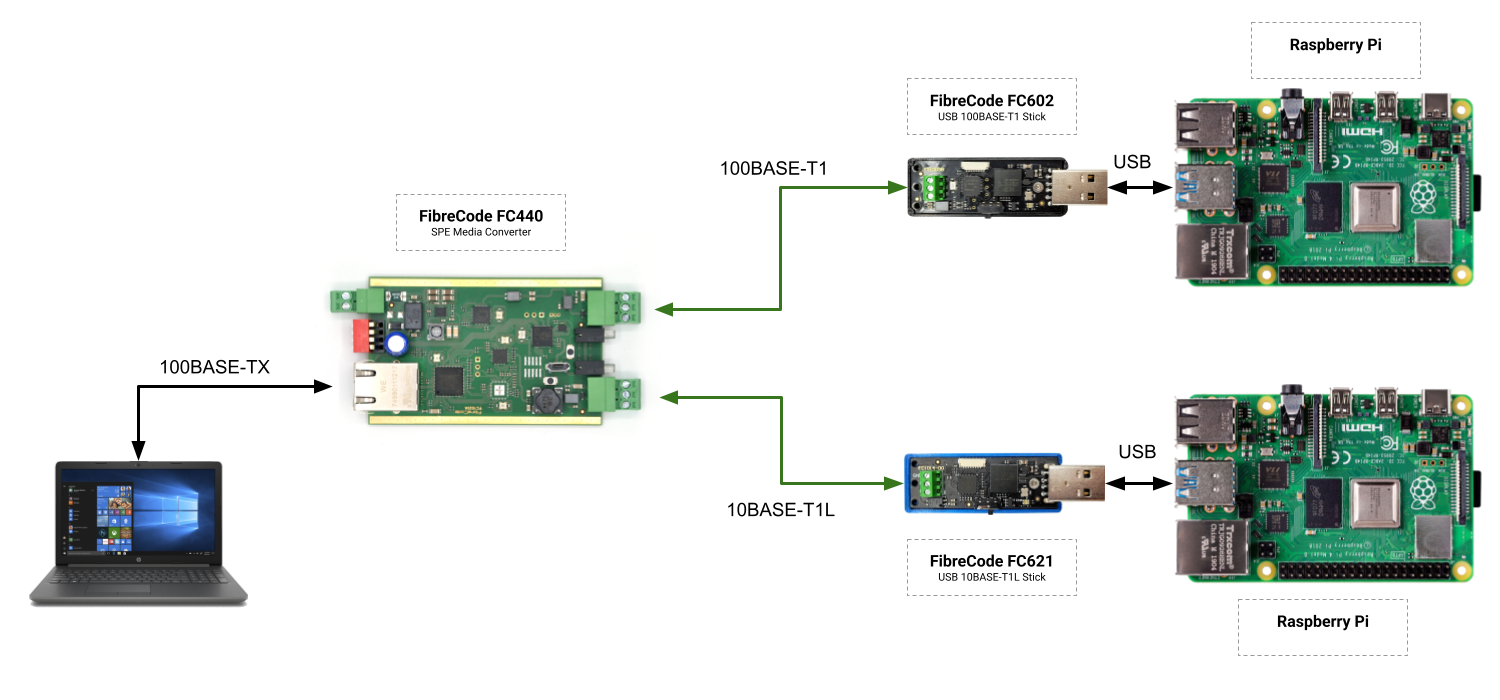

  • Media Converter from SPE 10BASE-T1L to LAN 100BASE-TX
  • Media Converter from SPE 100BASE-T1 to LAN 100BASE-TX
  • Extender from SPE 10BASET1L to second FC440 via 100BASE-TX point-to-point to achieve 10BASE-T1L with up to ~1000m
  • Extender from SPE 100BASE-T1 to second FC440 via 100BASE-TX point-to-point to achieve 100BASE-T1 with up to ~15m
  • Multi-Port SPE connectors using central LAN 100BASE-TX switch
  • Control 10BASE-T1L devices from PC incl. Wireshark traces
  • Control 100BASE-T1 devices from PC incl. Wireshark traces

Requirements

  • MS-Windows 10/11 or Linux host platform (e.g. PC, Laptop, Raspberry Pi)

Technical Data

Dimensions: 88 x 50.5 x 18 mm
Power Supply: 9..16 V
Operating Temperature: 0°C to +75°C
100BASE-TX Network Connector: RJ45 Connector

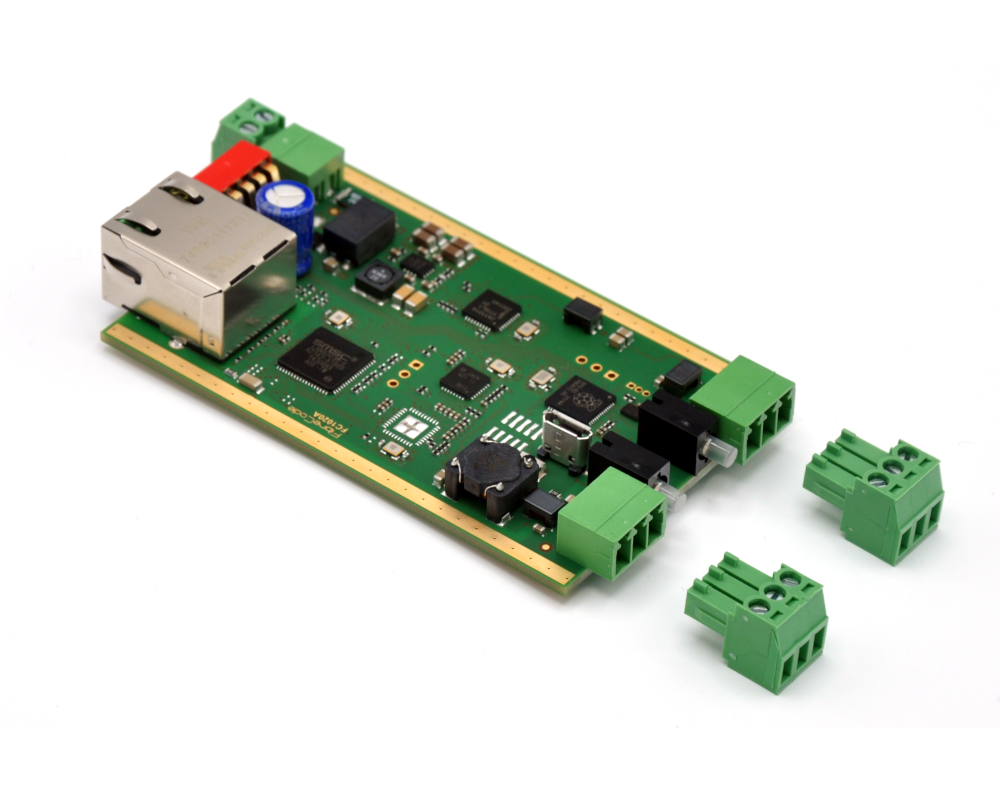

100BASE-T1 Connector: Pluggable terminal block (WR-TBL)
10BASE-T1L Connector: Pluggable terminal block (WR-TBL)

Download Section

Documentation
Product Flyer: PF_FC440_SPE-Media-Converter_­V01-00-00.pdf
Short Technical Description: Coming soon
User Manual: Coming soon

Ordering Information

Order Number: FC440
Product Name: SPE Media Converter
Deliverables: FC440 SPE Media Converter incl. green sub-shell
Price
(excl. tax & shipping cost):		 Quantity: 1 .. 9 -> Request a quote
Quantity: 10 .. 49 -> Request a quote
Quantity: 50+ -> Request a quote


Related Products

Order Number: FC900302
Product Name: UTP Ethernet Cable (FLR9Y, length 2 m)
Deliverables: UTP Ethernet Cable incl. end sleeves

Order Number: FC900303
Product Name: 12V Power Supply
Deliverables: 12V Power Supply with connector for FC440

Order Number: FC900440
Product Name: Closed Housing for FC440
Deliverables: Black aluminium housing for FC440
