FC602
USB 100BASE-T1 Stick

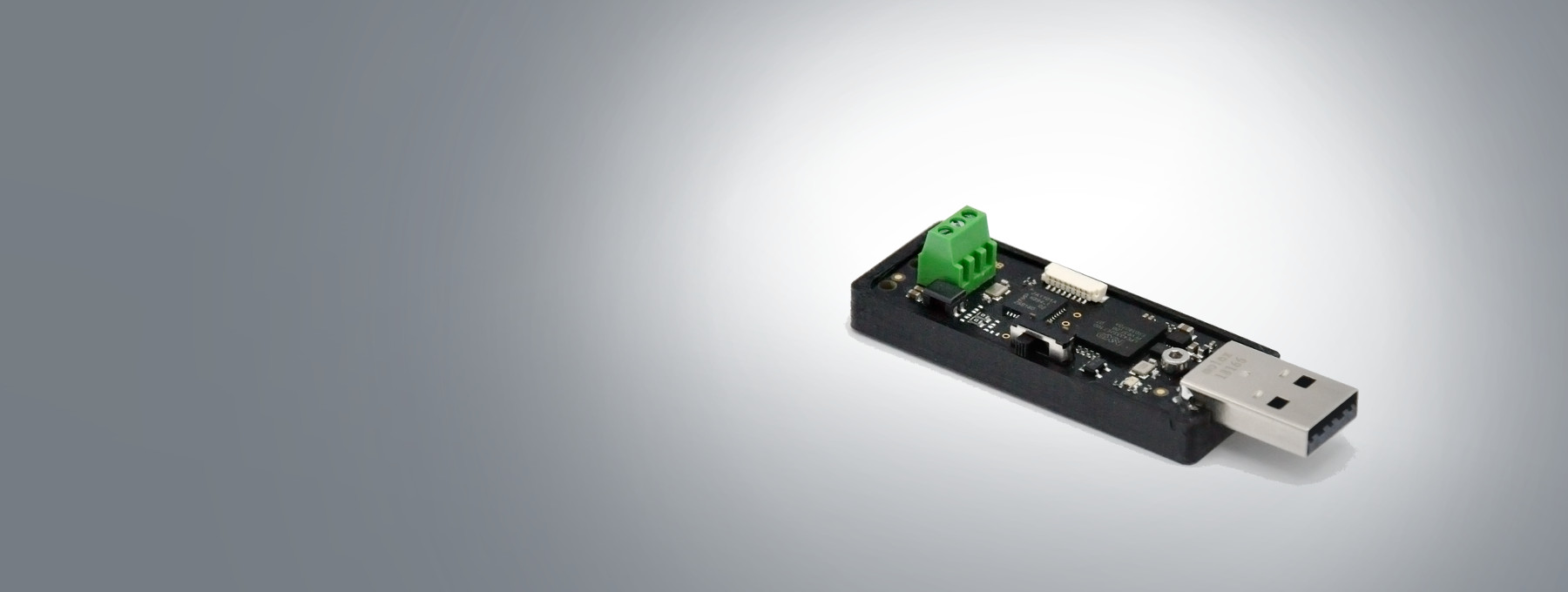

FC602 USB 100BASE-T1 Stick for Automotive Single Pair Ethernet (SPE)

Overview

The FC602 USB 100BASE-T1 Stick represents a compact hardware interface connecting MS-Windows and Linux based PCs with automotive Single Pair Ethernet (SPE) network devices and switches. Automotive Ethernet network standards OABR (OPEN Alliance BroadR-Reach) and 100BASE-T1 are supported.

The FC602 USB 100BASE-T1 Stick functions as seamless media converter between a standard USB 2.0 interface and a 100BASE-T1 automotive Single Pair Ethernet network. On Windows and Linux host PCs the FC602 USB 100BASE-T1 Stick is detected as standard Ethernet device.

Flexible software APIs feature full access to the NXP TJA1101 PHY internal registers. This enables cable testing and network diagnosis.

Features

Hardware

  • NXP TJA1101 100BASE-T1 PHY
  • OABR/BroadR-Reach/100BASE-T1 physical interface with UTP connector
  • NXP LPC4333 32-bit ARM Cortex-M4/M0 microcontroller
  • High-Speed USB 2.0 device interface with Type-A connector
  • Network Master/Slave configuration via hardware switch
  • USB powered
  • Compact and modular design

Software/Firmware

  • MS-Windows and Linux compatible
  • Standard Ethernet Network device on host PC
  • USB CDC/ECM driver for MS-Windows
  • Powerful and flexible API for TJA1101 SMI access
  • Common C-API and Python wrapper
  • Python abstraction class for TJA1101 MDIO register
  • Python and C++ sample applications
  • Firmware update via USB

Applications

The USB interface of the FC602 USB 100BASE-T1 Stick allows seamless connection to a broad variety of PCs, notebooks and embedded platforms. The USB Control and CDC/ECM profiles enable the usage of USB hosts running MS-Windows as well as Linux operating systems. This enables the USB 100BASE-T1 Stick for the following applications:

  • Standard Ethernet network device supporting OABR/BroadR-Reach/100BASE-T1 pyhsical interface
  • MS-Windows and Linux PC used as protocol analyzer (Wireshark) for 100BASE-T1 networks
  • Point-to-Point automotive Ethernet network connection using two USB 100BASE-T1 Sticks
  • Evaluation of NXP TJA1101 100BASE-T1 PHY chip with full access to SMI registers
  • 100BASE-T1 cable testing and network diagnosis
  • Simulation of multiple nodes on automotive Ethernet switch designs
  • Automotive Ethernet network simulation and demonstration

Requirements

  • MS-Windows 10 or Linux host platform (e.g. PC, Laptop, Raspberry Pi)
  • USB 2.0 host port

Technical Data

Dimensions: 68 x 20 x 15 mm
Power Supply: 5 V (USB powered)
Operating Temperature: 0°C to +85°C
USB Connector: USB 2.0 Type-A
OABR/BroadR-Reach/100BASE-T1 Connector: PTR screw terminal

Download Section

Documentation
Product Flyer: PF_FC602_USB-100BASE-T1-Stick_­V01-03-01.pdf
Short Technical Description: TD_FC602_USB-100BASE-T1-Stick_­V01-03-01.pdf
User Manual: UM_FC602_USB-100BASE-T1-Stick_­V01-03-01.pdf

Firmware/Software
Windows Firmware Package: WFP_FC602_USB-100BASE-T1-Stick_­V02-03-04.zip
Broadway2 Windows Software Package: WSP_Broadway_­V02-03-04.zip
Broadway2 Linux Software Package: LSP_Broadway_­V02-03-04.zip

    Broadway2 - Windows and Linux software package for FibreCode USB Sticks and Adapters.

Ordering Information

Order Number: FC602
Product Name: USB 100BASE-T1 Stick
Deliverables: USB 100BASE-T1 Stick incl. 2 m UTP Ethernet Cable and black sub-shell
Price
(excl. tax & shipping cost):		 Quantity: 1 .. 9 -> 289 € per part
Quantity: 10 .. 24 -> 279 € per part
Quantity: 25 .. 49 -> 269 € per part
Quantity: 50+ -> Request a quote

Order Number: FC602-EDU
Product Name: USB 100BASE-T1 Stick Educational
Deliverables: USB 100BASE-T1 Stick (on request UTP Ethernet Cable and black sub-shell can be purchased separately)
Price
(excl. tax & shipping cost):		 Quantity: 1 .. 2 -> 129 € per part
Quantity: 3+ -> Please order FC602 USB 100BASE-T1 Stick

     FC602-EDU is limited to max. 2 parts per customer and only meant for educational purposes like student projects.
     For product evaluation and higher volume purchase FC602.
